PD-1 Series (Pre-Dampener Pumps)
Putzmeister’s dependable Pre-Dampener Pumps are designed to be used with packaged, pre-blended materials for dry-process shotcrete applications. These units promote proper hydration of gunning materials and ensure minimal rebound. Pre-Dampener Pumps are ideal for use on refractory, civil and underground job-sites.
• PD-1 Continuous Pre-Dampener is designed to allow the addition of a controlled amount of moisture to bagged material as it is transported and fed into the gun
• PD-1/GRH Gunning Rig combines the proven success of the GRH rotor gun with our most popular pre-dampener
• R-900 Batch Pre-Dampener is designed for high-volume dry-process gunning in refractory or civil work
1. HISTORY
N/A
2. APPLICATION
• Dry-process shotcrete pumps
• For use with packaged, pre-blended materials
• Promotes proper hydration of gunning materials
• Ensures minimal rebound

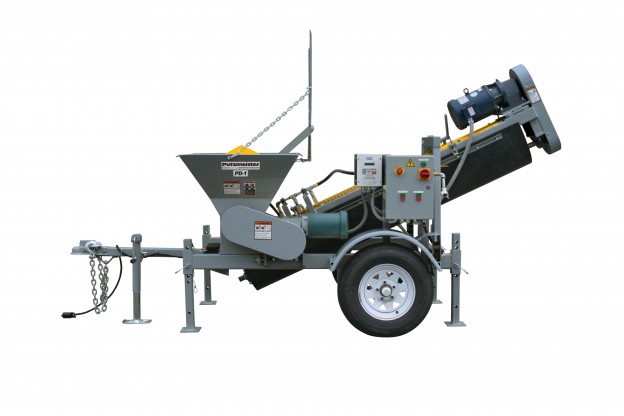

PD-1 Continuous Pre-Dampener
The PD-1 Pre-dampener is designed to allow the addition of a controlled amount of moisture to bagged material as it is transported and fed into the gun. Pre-dampening eliminates static electricity while greatly reducing dust and rebound. Gun part wear is also significantly minimized. Most importantly, pre-dampening produces the highest quality of in-place material.
OPTIONS:
• Air motor
• Hydraulic motor
• Trailer mounting
PD-1/GRH Gunning Rig
The PD-1/GRH Gunning Rig combines the proven success of the GRH rotor gun with our most popular pre-dampener. This machine provides the opportunity to add a controlled amount of moisture to the bagged material as it’s transported and fed into the gun. The addition of moisture – as much as 60 percent of the total water required – and the mixing action of the auger, starts the hydration process long before the material reaches the nozzle. A standard water-cooled diesel engine provides powerful performance. Trailer mounting includes single torq-flex axle, electric brakes and lights and a pintle towing hitch.
OPTIONS:
• Air motor
• Hydraulic motor
• Four-way forklift frame
• 100’ (30 m) extension for remote pendant
R-900 Batch Pre-Dampener
The R-900 Batch Pre-dampener is designed for high-volume dry-process gunning in Refractory or Civil work. This machine is ideal for use with the N-Type Pneumatic Gun, but will also feed any other Allentown rotary gun. The ease of operation and maintenance of the R-900 makes this a popular choice for Allentown customers.
OPTIONS:
• Wisconsin VH4D air-coded gasoline engine with clutch
• Pre-dampener spray bar with water meter
• Hose reel
3. SAFETY
N/A
4. OUTPUT
| Performance | Maximum volume output* |
| PD-1 | 1 – 10 yd3/hr (0.76 – 7.6 m3/hr) |
| PD-1/GRH | 1 – 6 yd3/hr (0.76 – 4.6 m3/hr) |
| R-900 | 8 – 10 tons/hr (7 – 9 tonnes/hr) |
5. TECHNICAL DATA
Technical Information
| Process Type | Power | Standard Mounting | |
| PD-1 | Dry | 5 hp (4 kW) 3/60/230/460 electric motor | Skid |
| PD-1/GRH | Dry | 26 hp (19 kW) water-cooled diesel engine | Single-axle trailer |
| R-900 | Dry | 35 hp (26 kW) water-cooled diesel engine | Tandem-axle trailer |
Dimensions
| Length | Width | Height | Weight (approx.) | |
| PD-1 | 106” (2692 mm) | 56” (1422 mm) | 72” (1829 mm) | 1400 lbs (635 kg) |
| PD-1/GRH | 168” (4267 mm) | 86” (2184 mm) | 78” (1981 mm) | 3200 lbs (1452 kg) |
| R-900 | 204” (5182 mm) | 94” (2426 mm) | 126” (3200 mm) | 4700 lbs (2132 kg) |
* Based on rotor and speed, material, conveying distance and air available. Maximum attainable volume depends on concrete mix design, pipeline diameter and specific job site conditions. Specifications subject to change without prior notice. Weights vary with options selected. Photos for illustrative purposes only. Refer to Allentown operational manuals for safe and proper equipment operation.
**Without gun.
